FULL-KING B5 Space Capsule
High - end Intelligent Homestay | Prefabricated Building | Whole - House Customization
| Category | Specification |
| Dimensions | Length: 8.5m × Width: 3.3m × Height: 3.2m |
| Floor Area | 28㎡ |
| Standard Layout | Living Room, Bedroom, Bathroom ,Kitchen |
| Applicable Scenarios | Homestays, Scenic Spots, RV Camps, Commercial Spaces |
| Weight | 8700KGS |
• Examples of Application Scenarios
✅ Scenic Viewing Room → Panoramic Skylight + Intelligent Temperature Control
✅ Homestay Villa → Customized Loft + Open Kitchen
✅ RV Camp → Quick Assembly + Solar Power Supply
• Product Highlights
✅ Wind Pressure Can Reach 9
• The outer doors and windows are not damaged under the action of wind pressure when they are normally closed.
✅ Fire ＆ Waterproof
• Wall water tightness up to level 6, resistant to strong winds and heavy rain.
Made of highly flame-retardant materials, excellent fire protection.
✅ Anti - Corrosion ＆ Anti - Insect
• The aluminum alloy is corrosion-resistant.
After special treatment, it has good airtightness and can prevent mosquitoes, insects and termites.
✅ Sound Insulation Performance Can Reach 45 DB
• The double glazing and sound insulation materials are used to meet the national standard "Green Building Evaluation Standard" GB50378.
✅ Intelligent and Comfortable
• The whole house uses intelligent control panel,which can recognize English and other languages.
The mobile APP can be remotely controlle.
✅ Thermal Insulation Up To 8 Levels
• Combined with various materials, the thermal insulation system achieves both heat preservation and insulation.

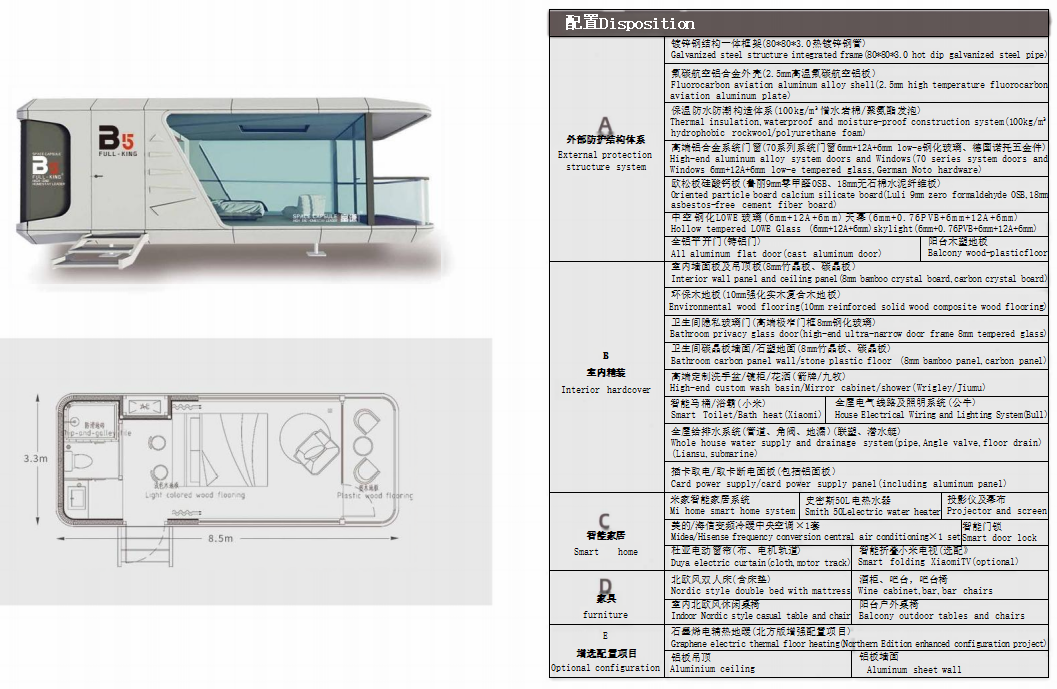

• Basic Configuration Table
| Component | Material/Technology |

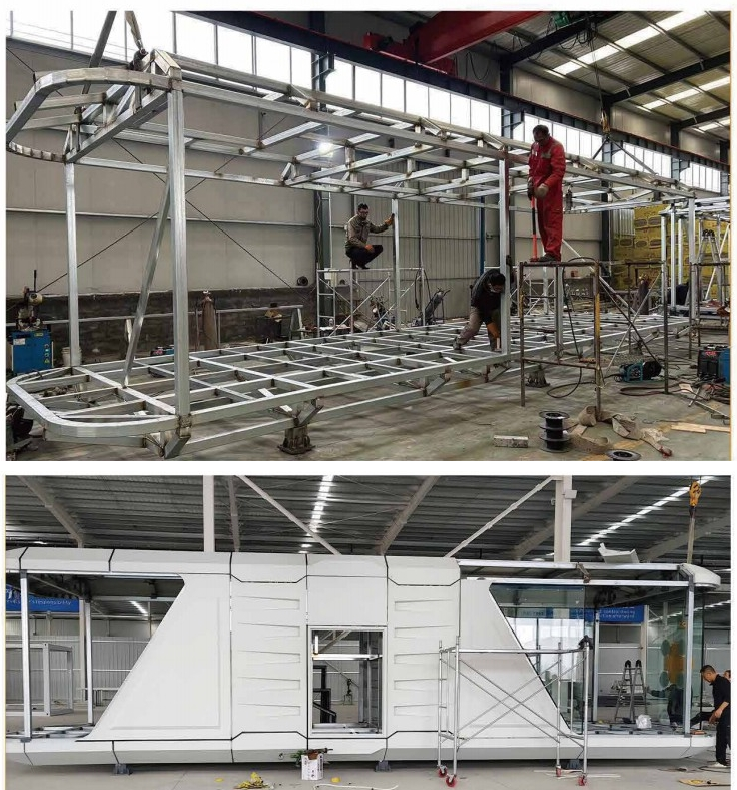

| Galvanized steel structure integrated frame | 80*80*3.0 hot dip galvanized steel pipe |
| Fluorocarbon aviation aluminum alloy shell | 2.5mm high temperature fluorocarbon aviation aluminum plate |
| High-end aluminum alloy system doors and Windows | 70 series system doors and Windows 6mm+12A+6mm low-e tempered glass |
| Oriented partcle board calcium silicate board | Luli 9mm zero formaldehyde OSB,18mm asbestos-free cement fiber board |
| Interior wall panel and ceiling panel | 8mm bamboo crystal board,carbon crystal board |
• Q＆A
Q1:Do you support overseas transportation?
→ We cover more than 65 countries,Ship in finished product form and ship in bulk,which are safe and efficient.
Q2: Why choose us?
→ Our company has been engaged in the steel business for more than ten years. We have rich international experience and professional capabilities. We can provide a variety of high-quality space capsule products to our clients.
Q3:Can you provide OEM/ODM services?
→ Yes. You are welcome to contact us to discuss more details.
Q4:Can we visit your factory
→ You are warmly welcome. Once we know your schedule, we will arrange a professional sales team to handle your case.
Q5:How is your Payment Term?
→ 50% payment in advance before production, and pay off the remaining 50% balance before delivery.
Consult Custom Solutions Now
vivi +86 19953627018 ( Same as wechat and whatsapp)
Product Tags:
|
|
Customizable FULL-KING B5 Space Capsule House High End Intelligent Homestay Solution Images
|
